12v 3a safety universal detachable wall plug adapter

FOB Reference Price:Get Latest Price
$6.70 - $7.20 / Piece | 1000 Piece/Pieces power adapter (Min. Order)
Plug Type:
AU EU UK US Universal CN JP KR BR AR IN ZA
Shipping:
Support Sea freight
Lead Time:
Quantity(Pieces) 1 - 3 4 - 20 21 - 1000 >1000
Est. Time(days) 7 15 20 Negotiable
Report Suspicious Activity
Overview
Quick Details
Brand Name:
xinsu global
Model Number:
XSG1203000
Usage:
security surveillance camera
Output Type:
DC
Connection:
Plug In
Place of Origin:
Guangdong, China
Input:
AC 100-240V 50/60Hz
Output:
12v 3a
Certificate:
UL CUL FC CE CB PSE PSB RCM SAA CTICK CCC KC ROHS
Protection:
OCP OVP OTP SCP
Material:
PC Fireproof Material
Function:
Detachable adapter
Application:
cctv,lcd monitor,tv box,lcd screen,led light,led strip
Power supply:
adapter
Warranty:
3years
Product name:
12v 3a safety universal detachable wall plug adapter
Supply Ability
Supply Ability:
500000 Piece/Pieces per Month power adapter
Packaging & Delivery
Packaging Details
PE bag+White box+Export standard Carton
Carton Size:46*30*33CM
75PCS/CTN
15kg/CTN
Port
FOB Shenzhen or HongKong
Lead Time :
Quantity(Pieces) 1 - 3 4 - 20 21 - 1000 >1000
Est. Time(days) 7 15 20 To be negotiated
Product Description
AC Input & DC Output
Product Name
12v 3a safety universal detachable wall plug adapter
Model No
XSG1203000
Type
Wall plug
AC input
100-240V,50/60HZ
AC input current
1.3A Max
DC output
12V 3A
Power Cord
1.2M power cord with US,AU,EU,UK,KR,JP,AR,BR,IN,ZA,CHN,interchangeable plug.
DC wire
UL2464/2468/1185/SPT-1, 1.2M/1.5M/1.8M or Customized length
DC plug
5.5*2.1,5.5*2.5,3.5*1.35,Canon connector, XLR connector, Air plug, TX40/60, Anderson connector etc.
No Load power
≤0.1W
Efficiency
≥87% At 115VAC
Energy efficiency level
Doe VI, CoC V, CEC VI, GEMS
LED indicator
Green light
Ripple and noise
120m VP-P
Inrush Current
35A max. at 100-240Vac input for a cold start at 25 degree
Efficiency
higher than 90% at 100-240Vac input and output full load
No-Load Input Power
Input 115Vac or 230Vac,output no load, the input power loss is less than 0.5W
Leakage Current
≤0.25mA/240V for class II product;≤0.75mA/240V for class I product
Certification&Adapter Life
Certificate
UL,CUL,FCC,CE,GS,CB,PSE,KC,RCM,SAA,C-TICK,CCC,ROHS
MTBF
50000 hours
Warranty
3years
Power Adapter Size&Package
Housing
Dimension:L91.8*W44.9*H37.5mm
Black
GE brand
PC material
UL94V-0
Packing
PE bag+White box+Export standard Carton
Carton Size:46*30*33CM
75PCS/CTN
15kg/CTN

Protection
Over-Current Protection
Pass
Over-Voltage Protection
Pass
Over Temp Protection
Pass
Anti-flow Protection
Optional
Reverse Polarity Protection
Optional
Environment
Operation Temperature
-20~40 degree
Storage Temperature
-30~70 degree
Relative Humidity
10%~90%
 Safety Test
Safety Standard
UL62368, EN62368, IEC62368, IEC60950, IEC61558, and IEC60335
A Harmonic source
Pass
HI-pot: Primary to Secondary
3KVAC,5mA,60s
Vibration and Shock
Meet MIL-STD-810D,method 514 and procedures X
Dropping Testing
X-Y-Z direction 100cm,one time with each direction
EMC/EMI
Meet FCC CLASS B,EN55022 CLASS B.
EMS
EN61000-4-2/3/4/5
Reliability And Quality Control
4-5 hours 100%Burn-In test under full load at 40 degree~±5.
Component Derating
Semiconductor junction temperatures shall not exceed the manufacturer's maximum thermal rating
Model List

Model list
Power Rate
Output Voltage
Output Current
W
V
mA
XSG1200300
3.6
12
300
XSG1200400
4.8
12
400
XSG1200500
6
12
500
XSG1200600
7.2
12
600
XSG1200700
8.4
12
700
XSG1200800
9.6
12
800
XSG1200900
10.8
12
900
XSG1201000
12
12
1000
XSG1201200
14.4
12
1200
XSG1201250
15
12
1250
XSG1201500
18
12
1500
XSG1201750
21
12
1750
XSG1202000
24
12
2000
XSG1202500
30
12
2500
XSG1203000
36
12
3000
XSG1203500
42
12
3500
XSG1204000
48
12
4000
XSG1204500
54
12
4500
XSG1205000
60
12
5000
XSG1205500
66
12
5500
XSG1206000
72
12
6000
XSG1206500
78.0
12
6500
XSG1207000
84.0
12
7000
12v 7.5a~12v 11a
Detailed Images

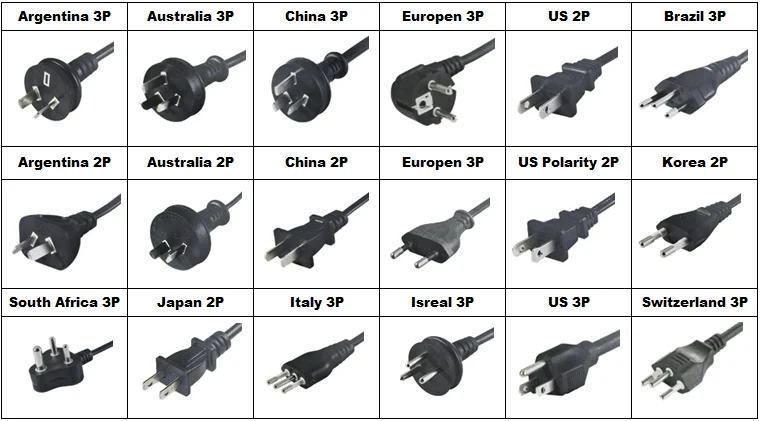

AC&DC Cord

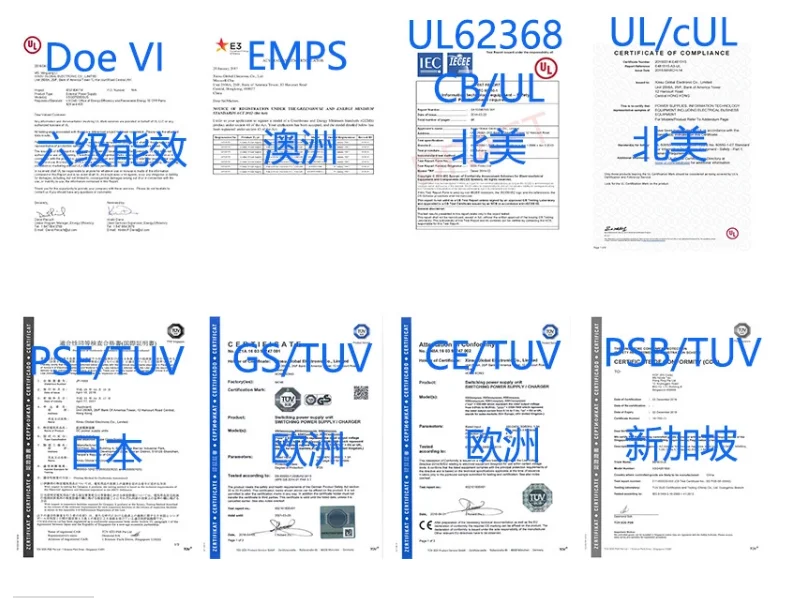

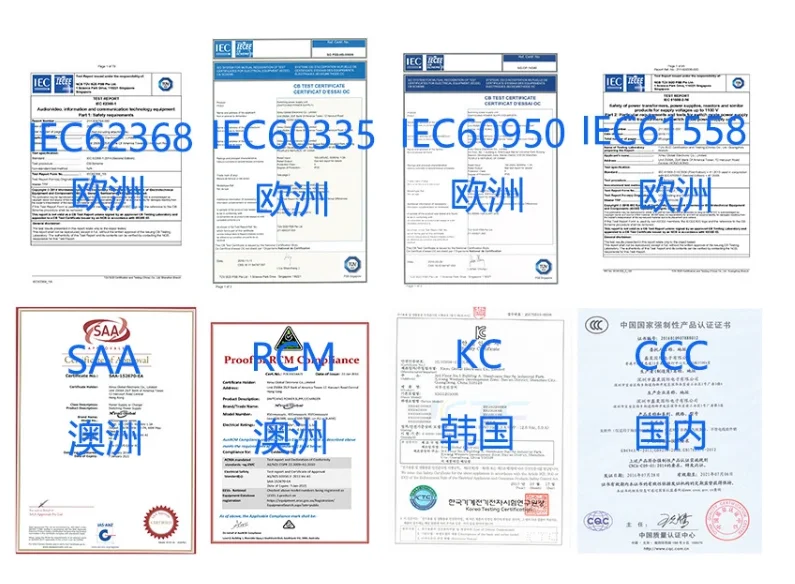

Certifications
Application
3D printer; POE Server; Motor; Massage Chair; Smart Home; Household Appliances; Video Product; Audio Transmitter; Audio Converter; Audio Amplifier; IT Products; Digital Image; Video Game Products; Wearable Electronics; LED light; Camera Equipment; Car-carried Refrigerator; Household Electric Fan; Electric Blanket; Car Starter; CCTV; Pump; Nebulizer; Air Purifier; Air Cleaner; Router; LED strip; Communication Power Supply; LCD Display; POS Machine; Centrifuge; Access System; Card Reader; Visual Intercom; Security Surveillance System; Mobile Phone; Cell phone; Digital Frame

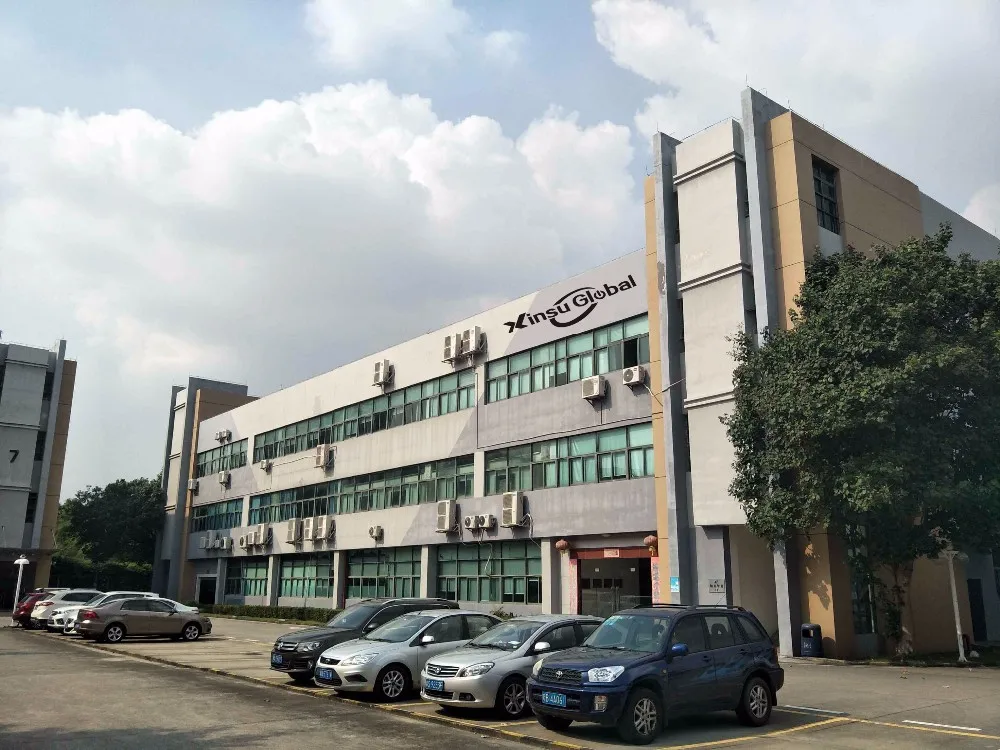

Our Company

*Established in 2007
*ISO9001 Quality System Factory
*Production Staff: 150 people; R&D: 7 people
*Certifications:UL,cUL,FCC,PSE,CCC,CE,CB,TUV/GS,LVD,
EMC, KC, RCM,SAA,C-Tick,PSB
*Main Clients:TESCO,BOSCH,HONEYWELL,
SUMITOMO. ETC
*Main Export Markets: Europe,North
America,Japan,Australia,Middle East,United Kingdom,Korea,China

Our Advantage:

*Designed in USA, Made in china
*Wide voltage input 100-240VAC
*Wide range of application
*Global Certificate,Full safety standard
*Capacitor imported from Taiwan
*Housing material: 100% PC, GE brand, fireproof grade: UL94V-0
*Customized length of input and output wire
*Customized DC connector
*Meet Energy Efficiency Doe VI, CEC VI, CoC V,GEMS

FAQ

1. Q: Are you a factory?
A Yes,We are a professional switching power supply manufactory in Shenzhen


2. Q: How many employees in your factory?
A About 200 employees,professional production people,QC department,experienced R&D engineers and passional salesman


3. Q: How to guarantee quality?
A:Components come from famous factories, professional QC department,100% burn-in


4. Q: What is your lead time?

 A: Samples 5-7 days, Mass production 15days


5. Q: What is your warranty?

A: 3years Warranty


6. Q: What are the payment terms:
A: T/T, Payapl, Western Union



Contact

Xinsu Global Electronic Co.,Ltd.


One of the leading manufacturer in the power adapter,battery charger and switching power supply


Chelsea Hou


Email: xsg25(at)xinsuglobal.com
Skype:xsg25(at)xinsuglobal.com
