42v 1.5a dc power charger 18650 lithium battery charger

FOB Reference Price:Get Latest Price
$9.20 - $11.20 / Piece | 300 Piece/Pieces 18650 Battery Charger (Min. Order)
Color:
Socket Standard:
Other EU/AU/UK/US
Shipping:
Support Sea freight
Lead Time:
Quantity(Pieces) 1 - 3 4 - 20 21 - 300 >300
Est. Time(days) 7 15 20 Negotiable
Report Suspicious Activity
Overview
Quick Details
Type:
Electric
Brand Name:
xinsu global
Model Number:
XSG4201500
Place of Origin:
Guangdong, China
Input:
AC 100-240V 50/60Hz
Output:
42v 1.5a
Certificate:
UL CUL FC CE CB PSE PSB RCM SAA CTICK CCC KC ROHS
Protection:
OCP OVP OTP SCP
Material:
PC Fireproof Material
Application:
Power tool,electric parts
Function:
Power charger
Battery type:
Li-ion Battery Charger
Warranty:
2years
Product name:
42v 1.5a dc power charger 18650 lithium battery charger
Use:
electric parts
Supply Ability
Supply Ability:
500000 Piece/Pieces per Month 18650 lithium charger
Packaging & Delivery
Packaging Details
PE bag+White box+Export standard Carton
Carton Size:43*38*35cm
50PCS/CTN
16.5kg/CTN
Port
FOB Shenzhen or HongKong
Lead Time :
Quantity(Pieces) 1 - 3 4 - 20 21 - 300 >300
Est. Time(days) 7 15 20 To be negotiated
Product Description
AC Input & DC Output
Product Name:
42v 1.5a dc power charger 18650 lithium battery charger
Model No:
XSG4201500
Type:
Desktop
AC input:
100-240V,50/60HZ
AC input current:
1.3A Max
DC output:
42V 1.5A
AC inlet:
IEC320-C6,C8,C14,fixed AC plug
Power Cord:
1.2M power cord with US,AU,EU,UK,KR,JP,AR,BR,IN,ZA,CHN plug.
DC wire
UL2464/2468/1185/SPT-1, 1.2M/1.5M/1.8M or Customized length
DC plug
5.5*2.1,5.5*2.5,3.5*1.35,Canon connector, XLR connector, Air plug, TX40/60, Anderson connector etc.
Charging Mode:
Three Stage mode smart charger, CC-CV-TRICKLE
LED indicator:
1. In process of Charging: Red
2. Charged full: Green
3. Red turns to Green, when Charging current less than 0.2A.
Inrush Current
35A max. at 100-240Vac input for a cold start at 25 degree
Efficiency
higher than 90% at 100-240Vac input and output full load
No-Load Input Power
Input 115Vac or 230Vac,output no load, the input power loss is less than 0.5W
Leakage Current
≤0.25mA/240V for class II product;≤0.75mA/240V for class I product,
Certification&Battery Life
Certificate
UL,CUL,FCC,CE,GS,CB,PSE,KC,RCM,SAA,C-TICK,CCC,ROHS
MTBF
50000 hours
Warranty
3years

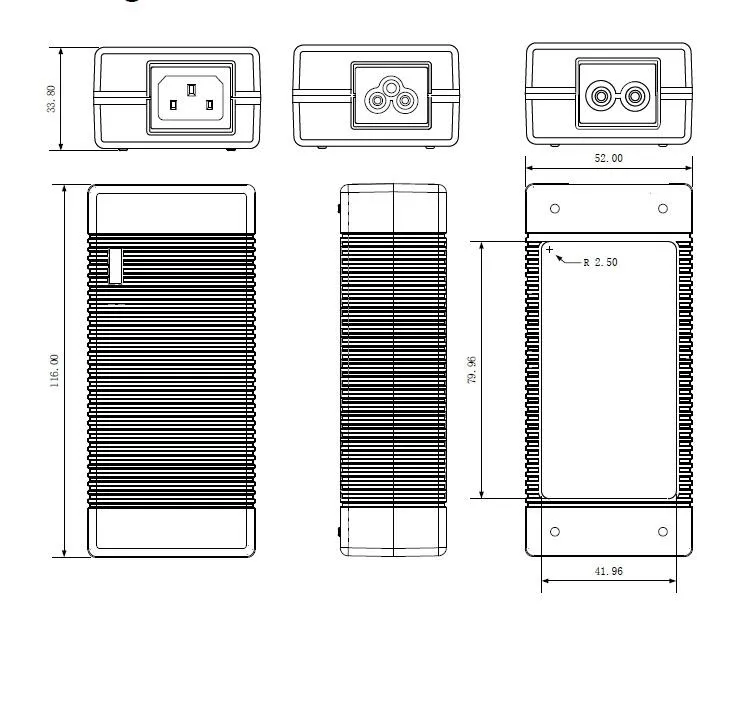

Battery Charger Size&Package
Housing
Dimension:L116*W52*H33.8mm
Black
GE brand
PC material
UL94V-0
Packing
PE bag+White box+Export standard Carton
Carton Size:43*38*35cm
50PCS/CTN
16.5kg/CTN
Protection
Over-Current Protection
Pass
Over-Voltage Protection
Pass
Over Temp Protection
Pass
Anti-flow Protection
Optional
Reverse Polarity Protection
Optional
Environment
Operation Temperature
-20~40 degree
Storage Temperature
-30~70 degree
Relative Humidity
10%~90%
 Safety Test
Safety Standard
UL62368, EN62368, IEC62368, IEC60950, IEC61558, and IEC60335
A Harmonic source
Pass
HI-pot: Primary to Secondary
3KVAC,5mA,60s
Vibration and Shock
Meet MIL-STD-810D,method 514 and procedures X
Dropping Testing
X-Y-Z direction 100cm,one time with each direction
EMC/EMI
Meet FCC CLASS B,EN55022 CLASS B.
EMS
EN61000-4-2/3/4/5
Reliability And Quality Control
4-5 hours 100%Burn-In test under full load at 40 degree~±5.
Component Derating
Semiconductor junction temperatures shall not exceed the manufacturer's maximum thermal rating

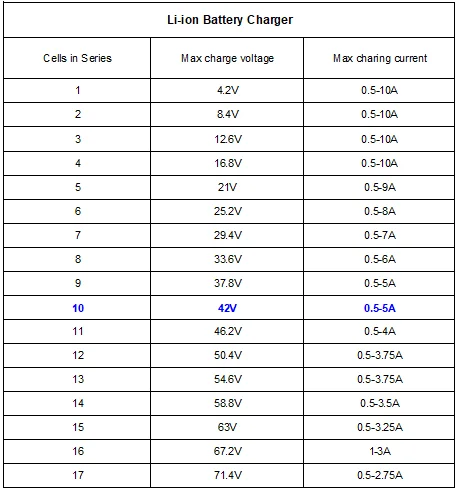

Scope of Charging

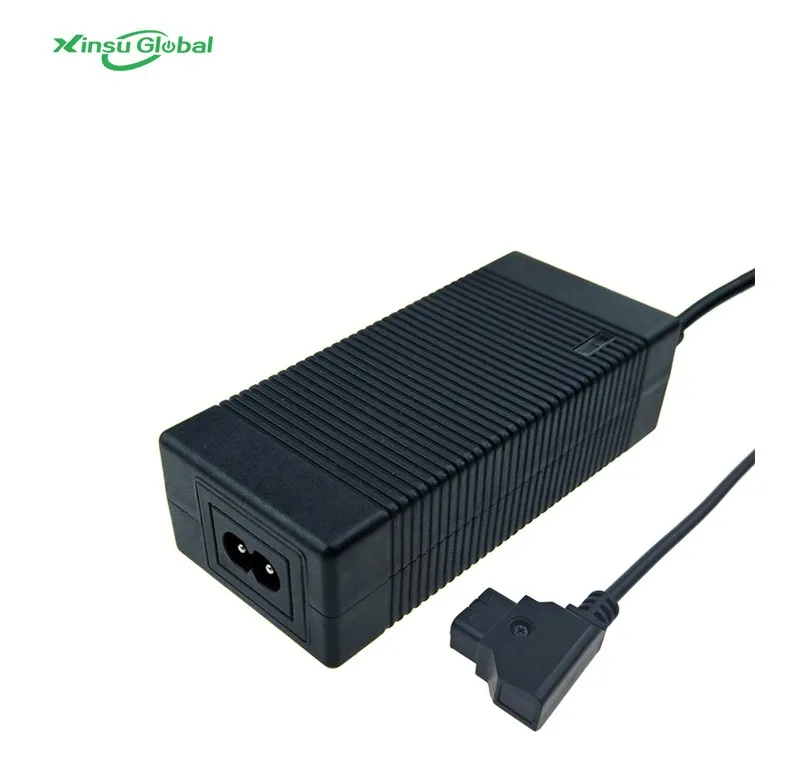

Detailed Images
AC&DC Cord
Certifications
Application

Vacuum Cleaner

Lawn Mower Robot

Sweeping Machine

Floor Care


Diving Equipment

Beauty Apparatus

Restaurant Robot

Power Pack

Auto Serving Machine

Intelligent Terminal


Sightseeing Car

Glof Cart

E-ATV

ATVAll Terrain Vehicle

Electric Motorcycle



Drone

Unmanned Aerial Vehicle

Underwater Drone

Underwater Scooter

Power Tool

Garden Tool

Electronic Scale

Electric Toy

Torch

LED Light

measuring instrument

Heating products


Military security

Sharable Battery

AGV

Automated Guided Vehicle

Electric Forklift

Medical Equipment

Industrial Equipment


Electric Wheelchair

Self Balance Scooter

Self-balancing Unicycle

Electric Skateboard

Smart Helmet


Mobile phone

Cell phone

Digital Camera

camera equipment

digital frame


Sloar Street Light Power Pack

TREADMILL

Massage Pillow

Smart  Home

Home Automation



Our Company

*Established in 2007
*ISO9001 Quality System Factory
*Production Staff: 150 people; R&D: 7 people
*Certifications:UL,cUL,FCC,PSE,CCC,CE,CB,TUV/GS,LVD,
EMC, KC, RCM,SAA,C-Tick,PSB
*Main Clients:TESCO,BOSCH,HONEYWELL,
SUMITOMO. ETC
*Main Export Markets: Europe,North
America,Japan,Australia,Middle East,United Kingdom,Korea,China

Our Advantage:

*Designed in USA, Made in china
*Wide voltage input 100-240VAC
*Wide range of application
*Global Certificate,Full safety standard
*Capacitor imported from Taiwan
*Housing material: 100% PC, GE brand, fireproof grade: UL94V-0
*Customized length of input and output wire
*Customized DC connector
*Meet Energy Efficiency Doe VI, CEC VI, CoC V,GEMS

FAQ

1. Q: Are you a factory?
A Yes,We are a professional switching power supply manufactory in Shenzhen


2. Q: How many employees in your factory?
A About 200 employees,professional production people,QC department,experienced R&D engineers and passional salesman


3. Q: How to guarantee quality?
A:Components come from famous factories, professional QC department,100% burn-in


4. Q: What is your lead time?

 A: Samples 5-7 days, Mass production 15days


5. Q: What is your warranty?

A: 3years Warranty


6. Q: What are the payment terms:
A: T/T, Payapl, Western Union
