19v 2.1a for lg ac dc adapter power adapter ce listed

FOB Reference Price:Get Latest Price
$11.70 - $12.30 / Piece | 500 Piece/Pieces 19v 2.1a lg power adapter (Min. Order)
Plug Type:
AU EU UK Universal US Universal
Shipping:
Support Sea freight
Lead Time:
Quantity(Pieces) 1 - 500 >500
Est. Time(days) 20 Negotiable
Report Suspicious Activity
Overview
Quick Details
Brand Name:
xinsu global
Model Number:
XSG1902100
Usage:
lg lcd
Output Type:
DC
Connection:
Plug In
Place of Origin:
Guangdong, China
Input:
AC 100-240v 50-60hz
Output:
19v 2.1a
Power:
38w
Color:
Black White
Certification:
UL CUL FC CE CB PSE PSB RCM SAA CTICK CCC KC ROHS
Protection:
OVP OCP OTP SCP
Warranty:
2 Years
Condition:
100% Original
Ripple and noise:
100m Vp-p
Product Name:
19v 2.1a for lg ac dc adapter power adapter ce listed
Supply Ability
Supply Ability:
600000 Piece/Pieces per Month ac/dc power supply 19v 2100ma
Packaging & Delivery
Packaging Details
PE bag+White box+Export standard Carton
Carton Size:46*30*33CM
75PCS/CTN
15kg/CTN
Port
shenzhen or hongkong
Lead Time :
Quantity(Pieces) 1 - 500 >500
Est. Time(days) 20 To be negotiated
Product Description
Product Name: 19v 2.1a for lg ac dc adapter power adapter ce listed
Model No:
XSG1902100
Type:
Wall Mount
AC input:
100-240V,50/60HZ
AC input current:
1.3A Max
AC plug
 US,AU,EU,UK,KR,JP,CHN interchangeable plug
No Load power
≤0.1W
Efficiency
≥87% At 115VAC
DC output:
19V 2.1A
LED indicator
Green light
DC wire
UL2464/2468/1185/SPT-1, 1.2M/1.5M/1.8M or Customized length
DC plug
5.5*2.1,5.5*2.5,3.5*1.35,Canon connector, XLR connector, Air plug, TX40/60, Anderson connector etc.
Housing
Dimension:L117.5*W56.5*H44.5mm
Black
GE brand
PC material
UL94V-0
Packing
PE bag+White box+Export standard Carton
Carton Size:46*30*33CM
75PCS/CTN
15kg/CTN
Certificate
UL,CUL,FCC,CE,GS,CB,PSE,KC,RCM,SAA,C-TICK,CCC,ROHS
Energy efficiency level
Doe VI, CoC V, CEC VI, GEMS
Safety Standard
UL62368, EN62368, IEC62368, IEC60950, IEC61558, and IEC60335
MTBF
50000 hours
Warranty
2 years
Inrush Current
35A max. at 100-240Vac input for a cold start at 25 degree
EFFICIENCY
higher than 90% at 100-240Vac input and output full load
No-Load Input Power
Input 115Vac or 230Vac,output no load, the input power loss is less than 0.5W
OVER-CURRENT PROTECTION
The battery charger shall be hiccup when any output operating in overload condition(set@ Max load 100~180% ) under any line condition for an indefinite period of time. The battery charger shall be self - recovery when the fault condition is removed.
SHORT-CIRCUIT PROTECTION
The battery charger shall be hiccup and no damage shall occur when any output operating in a short circuit condition under any line condition for an indefinite period of time. The battery charger shall be self recovery when the fault condition is removed.
Operation/Storage Temperature
-20~40 degree/-30~70 degree
Relative Humidity
10%~90%
Vibration and Shock
The battery charger shall be designed to withstand normal transportation vibration per MIL-STD-810D,method 514 and procedures X, as it s mounted in the chassis assembly and packed for shipping.
Dropping Testing
X-Y-Z direction 100cm,one time with each direction
EMS
EN61000-4-2/3/4/5
RELIABILITY AND QUALITY CONTROL
BURN-IN: The battery charger shall undergo a minimum of 4 hours Burn-In test under full load at 40 degree~±5.
COMPONENT DERATING:
Semiconductor junction temperatures shall not exceed the manufacturer's maximum thermal rating
LEAKAGE CURRENT
The leakage current shall be less than 0.25mA for class II product;When battery charger is operated maximum input voltage and maximum load.

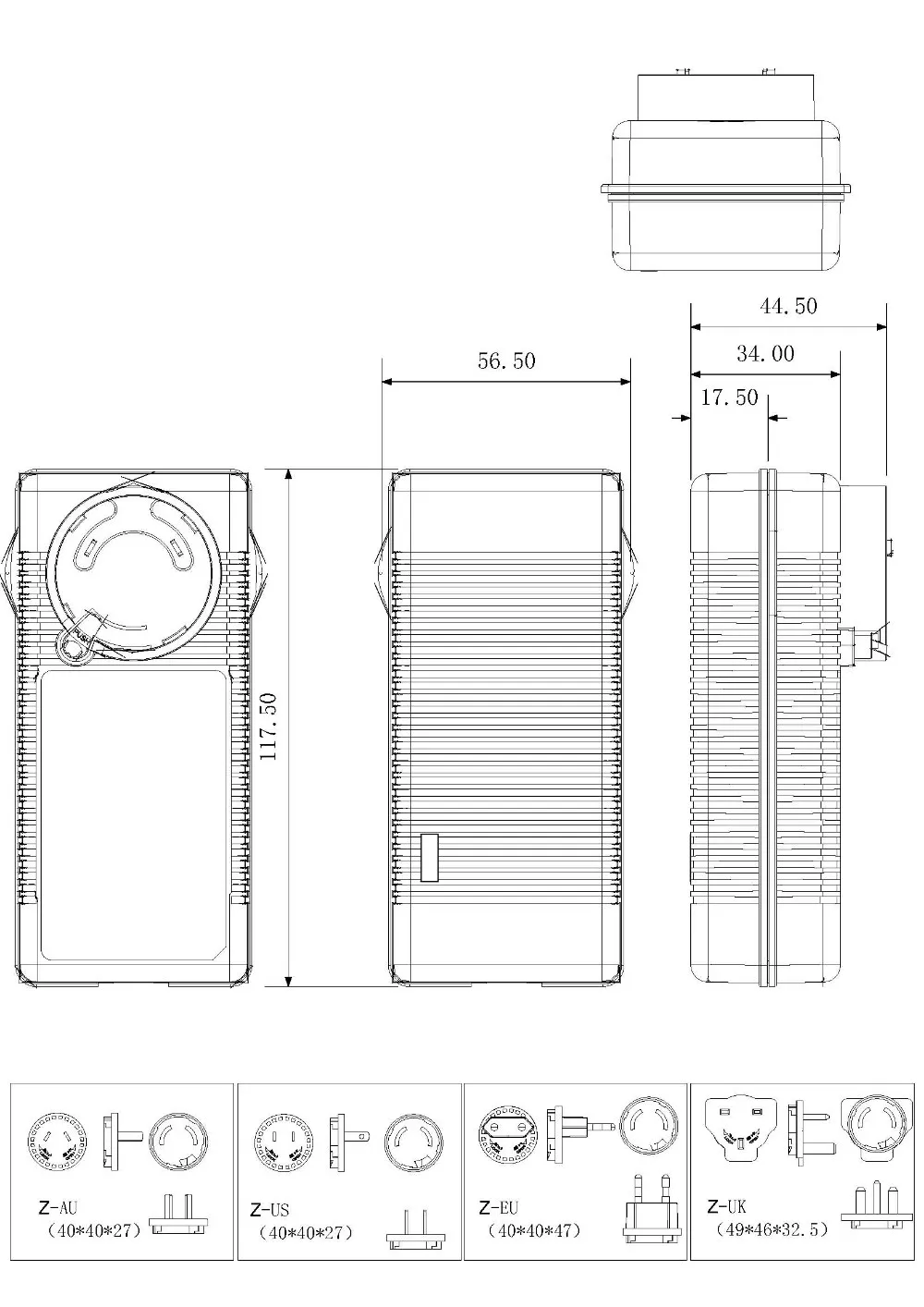

Drawing-mm
Model list
Model No
Power Rate
Output Voltage
Output Current
W
V
mA
XSG1900300
5.7
19
300
XSG1900400
7.6
19
400
XSG1900500
9.5
19
500
XSG1900600
11.4
19
600
XSG1900700
13.3
19
700
XSG1900800
15.2
19
800
XSG1900900
17.1
19
900
XSG1901000
19.0
19
1000
XSG1901500
28.5
19
1500
XSG1901750
33.3
19
1750
XSG1902000
38.0
19
2000
XSG1902100
39.9
19
2100
XSG1902150
40.9
19
2150
XSG1902500
47.5
19
2500
XSG1903000
57.0
19
3000
XSG1903150
59.9
19
3150
XSG1903400
64.6
19
3400
XSG1903420
65.0
19
3420
XSG1903500
66.5
19
3500
XSG1903750
71.3
19
3750
XSG1904000
76.0
19
4000
XSG1904500
85.5
19
4500
XSG1904740
90.1
19
4740
XSG1904750
90.3
19
4750
XSG1905000
95.0
19
5000
XSG1905500
104.5
19
5500
XSG1906000
114.0
19
6000
XSG1906320
120.1
19
6320
XSG1906500
123.5
19
6500
XSG1907000
133.0
19
7000
XSG1907500
142.5
19
7500
XSG1907890
149.9
19
7890
XSG1908000
152.0
19
8000
XSG1908500
161.5
19
8500
XSG1909000
171.0
19
9000
XSG1909500
180.5
19
9500
XSG19010000
190.0
19
10000
Detailed Image
Application

3D printer; POE Server; Motor; Massage Chair; Smart Home; Household Appliances; Video Product; Audio Transmitter; Audio Converter; Audio Amplifier; IT Products; Digital Image; Video Game Products; Wearable Electronics; LED light; Camera Equipment; Car-carried Refrigerator; Household Electric Fan; Electric Blanket; Car Starter; CCTV; Pump; Nebulizer; Air Purifier; Air Cleaner; Router; LED strip; Communication Power Supply; LCD Display; POS Machine; Centrifuge; Access System; Card Reader; Visual Intercom; Security Surveillance System; Mobile Phone; Cell phone; Digital Frame


Our Advantage

*Designed in USA, Made in china
*Wide voltage input 100-240VAC
*Wide range of application
*Global Certificate,Full safety standard
*Capacitor imported from Taiwan
*Housing material: 100% PC, GE brand, fireproof grade: UL94V-0
*Customized length of input and output wire
*Customized DC connector
*Meet Energy Efficiency Doe VI, CEC VI, CoC V,GEMS

Key Components
FAQ

1. Q: Are you a factory?
A Yes,We are a professional switching power supply manufactory in Shenzhen


2. Q: How many employees in your factory?
A About 200 employees,professional production people,QC department,experienced R&D engineers and passional salesman


3. Q: How to guarantee quality?
A:Components come from famous factories, professional QC department,100% burn-in


4. Q: What is your lead time?

 A: Samples 5-7 days, Mass production 15days


5. Q: What is your warranty?

A: 3years Warranty


6. Q: What are the payment terms:
A: T/T, Payapl, Western Union
